Self Pierce Busbar Industrial Rivet Punching Machine High Volume Product

Self-pierce Rivet Setting Solution for High Volume Busduct Production Automatic Riveting System

This riveting machine system is used for high volume busduct production.

This self-pierce rivet setting system offers a reliable, robust, and cost-effective method of automatically feeding fasteners.

Equipment data on self-piercing riveting machine

Function introduction

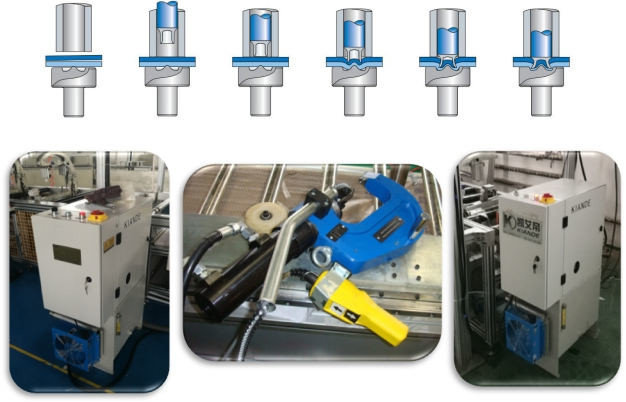

Self-piercing riveting machine, also called riveting gun, is applied for busbar assembly. It can be customized according to different busbar housing. Before riveting, operator does not need to drill the hole. Machine can realize self-piercing riveting by its pressure and rivet structure. Working principal is as below.

Features:

1, The supercharger drives the split cylinder as the riveting power source, which has the characteristics of low noise, low energy consumption and no pollution.
2, The servo system controls the rivet clamp and the left and right movement, to realize the two sides are simultaneously riveted by the forward movement and the stop action of the roller.
3, The discharge line has a lateral removal function.
4, The busbar casing is no more than 3 meter length.
5, Feeding line has servo clamping mechanism, the most front-end is 3m roller table

self pierce rivet punching machine

busbar rivet punching machine

busbar industrial rivet machine
